ELECTROSTATICS
Benjamin Franklin performed many experiments on the nature of electricity. In one of these, he flew a kite during a thunderstorm to show that clouds are electrically charged and that he could describe sparks from a central tied to the kite string-- at the adventure of his life.
Electrical Accuse
sixteen.one Charges at Rest We tin can observe about united states a number of concrete furnishings that are sometimes produced by rubbing pieces of dry matter. Sometimes an annoying shock is felt when the door handle of an automobile (heh, heh) is touched later on one slides over the plastic-covered seat.
We may feel a stupor subsequently we walk on a woolen carpet and so touch a doorknob (yeeeowwwie) or other metallic object. The slight crackling sound heard when dry hair is brushed and the trend of sparse sheets of newspaper to resist separation are other common observations of these physical effects.
When an object shows furnishings of the type nosotros accept described, we say that it has an electrical accuse. The process that produces electrical charges on an object is chosen electrification.
Electrification is almost apparent when the air is dry out. An object that is electrically charged can attract small $.25 of cork, newspaper, or other lightweight particles. Considering the electric charge is confined to the object and is not moving, it is called an electrostatic charge . Thus static electricity is stationary electricity in the course of an electric charge at residue. Static electricity is commonly produced by friction between two surfaces in close contact.
16.ii 2 Kinds of Charge We tin detect the presence of an electrostatic charge by means of an musical instrument called an electroscope. The simplest kind of electroscope is a pocket-size ball of wood pith or styrofoam suspended by a silk thread. This electroscope is more sensitive if the pith ball is coated with aluminum or graphite. Such an instrument is shown in Figure xvi-1.
Suppose a hard rubber or plastic rod is charged by stroking information technology with flannel or fur (kitteeee). If the cease of the charged rod is then held near a simple electroscope, the pith ball is attracted to the rod.
If the pith ball is allowed to come in contact with the charged rod, information technology immediately rebounds and is then repelled by the rod. We can reasonably assume that some of the charge has been transferred to the pith ball so that both the rod and the ball are now similarly charged.
Now suppose a glass rod is charged by stroking information technology with silk. If the drinking glass rod is held nearly the charged electroscope, the pith brawl is attracted rather than repelled equally information technology was with the charged rubber rod. These effects of allure and repulsion can be explained if we assume that there are ii kinds of electric charge.
The electric charge produced on the condom rod when the rod is stroked with flannel or fur is called a negative charge. The rod is said to be charged negatively.
The electric charge produced on the glass rod when the rod is stroked with silk is called a positive charge. The rod is said to be charged positively.
From a study of atomic structure information technology is known that all affair contains both positive and negative charges. For simplification, notwithstanding, the diagrams that follow show only the excess accuse. If an object has an backlog negative charge, the net charge will be indicated past negative (-) signs. If it has an backlog positive charge, the net charge volition be indicated by positive (+) signs. A neutral object will have no sign considering it has the same amount of each kind of charge and therefore a net accuse of zero.
Ii pith balls that are negatively charged by contact with a charged safe rod repel each other. Similarly, two pith balls that are positively charged by contact with a charged glass rod as well repel each other. Nonetheless, if a negatively charged pith ball is brought near a positively charged pith brawl, they attract each other. Come across Figure xvi-two. These observations are summarized in a basic police of electrostatics:
Objects that are similarly charged repel each other; objects that are oppositely charged attract each other.
16.3 Electricity and Thing As an understanding of the nature of static electricity requires a knowledge of the basic concepts regarding the structure of matter, we will briefly discuss these concepts now. (These concepts will exist discussed more fully in Chapter 23.) All matter is composed of atoms, of which at that place are many different kinds.
Each atom consists of a positively charged nucleus surrounded past negatively charged electrons.
Protons and neutrons are tightly packed into the very dense nucleus. Because each proton possesses a single unit of positive electric charge and neutrons, as their name suggests, are neutral particles, the nucleus is positively charged. This charge is determined by the number of protons the nucleus contains.
All electrons surrounding the nucleus are alike. They all comport the same amount of negative electrical accuse-- ane unit of measurement of negative charge per electron. Considering an atom is electrically neutral, we know that the nucleus has a positive charge equal in magnitude to the total negative electronic accuse. Thus the number of electrons of a neutral atom equals the number of protons.
The rest mass of an electron is 9.1095 x 10-31 kg. The mass of a proton is 1.6726 x 10-27 kg and that of a neutron is ane.6750 x 10-27 kg. Both the proton and the neutron accept masses that are nearly 2000 times greater than the mass of an electron. The mass of an atom is well-nigh entirely concentrated in the nucleus.
Protons and neutrons are bound together within the nucleus past strong forces acting through very short distances. By comparison, the repulsions betwixt protons that are due to their similarity of charge are weak forces.
The electrons are retained in the atom structure by the electric allure exerted by the positive nuclear charge. In general the outermost electrons of higher energies are held less firmly in the atom structure than inner electrons of lower energies. The outer electrons of the atoms of metal elements in item are loosely held and are easily influenced by outside forces.
When two appropriate materials are in close contact, some of the loosely held electrons can be transferred from 1 material to the other.
If a difficult safe rod is stroked with fur, some electrons tin can be transferred from the fur to the rod. The safe rod becomes negatively charged because it has a net backlog of electrons, and the fur becomes positively charged because it has a net deficiency of electrons.
Similarly, when a glass rod is stroked with silk, some electrons are transferred from the glass to the silk. The glass is positively charged because it has a net deficiency of electrons, and the silk is negatively charged considering it has a net excess of electrons. All these charged states result from the transfer of electrons .
Electric charge is a scalar quantity. The net charge on an object is the sum of its positive charges minus the sum of its negative charges.
16.4 The Electroscope Ii mutual types of electroscopes that are more sensitive than the simple pith brawl device are shown in Figure 16-three.
The vane electroscope consists of a light aluminum rod mounted past means of a central begetting on a metallic support that is insulated from its metal stand. When charged, the vane is deflected at an bending by electrostatic repulsion. The angle of deflection depends on the magnitude of the charge.
The leaf electroscope consists of very fragile strips of gold leaf suspended from a metal stem that is capped with a metal knob. The leaves are enclosed in a metal example with glass windows for their protection, and the metal stem is insulated from the instance.
When electrified, the leaves diverge because of the force of repulsion due to their similar charge. Skilful sensitivity is realized because of the very low mass of the aureate leaf.
16.5 Conductors and Insulators Suppose that an aluminum coated pith ball is suspended by a silk thread and the brawl is continued to the knob of a leaf electroscope by means of a copper wire, every bit shown in Effigy 16-4.
When a charge is placed on the pith brawl, the leaves of the electroscope diverge. Apparently the accuse on the ball is transferred to the electroscope past the copper wire.
Now suppose a silk thread is substituted for the copper wire. When a charged is placed on the pith brawl, the leaves of the electroscope practice not diverge. The charge has not been conducted to the electroscope by the silk thread.
A usher is a fabric through which an electrical charge is readily transferred. Nigh metals are good conductors. At normal temperatures, silver is the best solid conductor; copper and aluminum follow in that gild.
An insulator is a material through which an electrical accuse is not readily transferred. Good insulators are such poor conductors that for practical purposes they are considered to be nonconductors . Glass, mica, paraffin, hard rubber, sulfur, silk, dry air, and many plastics are good insulators.
Liquid solutions and confined gases conduct electricity in a unlike way than solids. At this time we are interested in the conductivity of solids. We can use our knowledge of the structure of matter in describing why some materials are conductors and why some are insulators.
A few grams of matter contain a very large number of atoms and, except for hydrogen, an even larger number of electrons. For example, 27 g of aluminum consists of 6.02 10 1023 aluminum atoms ( 1 mole) containing 7.83 x1024 electrons.
On an atomic scale, in that location is one electron in approximately ii.2 atomic mass units of thing. (Ane atomic mass unit = one.66 x 10-24 g of affair.) Metals have close-packed crystal structures. The crystal lattice cansists of positively charged particles permeated past a cloud of gratuitous electrons. This deject of costless electrons is commomly referred to as the eIectron gas. The binding strength in such structures is the attraction between the positively charged metal ions and the electron gas.
The loosely held outer most electrons of the metal atoms have been "donated" to the electron gas and belong to the crystal every bit a whole. These electrons are free to migrate throughout the crystal lattice. Their migration gives rising to the loftier electric conductivity usually associated with metals.
A good usher contains a big number of free electrons whose motions are relatively unimpeded within the fabric. Since like charges repel, the gratis electrons spread throughout the material in lodge to relieve any local concentration of accuse. If such a material is in contact with a charged trunk, the complimentary electrons surge in a common direction. If the charged object is deficient in electrons (positively charged), this surge is in the management of the object.
If the charged object has an excess of electrons (negatively charged), the surge is abroad from the object. See Figure 16-5. In either case a transfer of electric charge continues until the repulsive forces between the free electrons are in equilibrium throughout the entire system.
An insulator is characterized by a lack of free electrons because even the outermost electrons are rather firmly held within the atom construction. Thus the transfer of charge through an insulator is usually negligible. If an excess of electrons is transferred to whatsoever particular region of such a fabric, the actress electrons remain in that region for some time earlier they gradually leak away.
16.6 Transferring EIectrostatic Charges Suppose a rubber rod is charged negatively by stroking it with kitteeee. If the rod is brought near the knob of an electroscope, the leaves diverge. If the rod is removed, the leaves collapse; no charge remains on the electroscope.
The charge that makes the leaves diverge is called an induced charge. The electroscope is said to exist charged temporarily by induction.
We can reason that the negative charge on the rod when brought near the metal knob of the electroscope repels free electrons in the knob and metallic stem and forces them down to the leaves. See Figure 16-half dozen(A).
The force of repulsion of the actress electrons on the leaves causes them to diverge. The knob is and then scarce in electrons and is positively charged. As soon as the force of repulsion exerted past the charged rod is withdrawn, the excess complimentary electrons on the leaves scatter throughout the stalk and knob, restoring the normal uncharged state throughout the electroscope.
Similarly, a glass rod that has been stroked with silk temporarily induces a positive accuse on the leaves of an electroscope by attracting electrons up through the stem to the knob. Run into Figure 16-6(B).
Electrostatic experiments are best performed in dry air.
In moist air an invisible film of water condenses on the surfaces of objects, including those of charged insulators. Dissolved impurities in the motion picture make these surfaces conductive, and an isolated charge cannot be maintained for any length of time.
Whatever conducting object when properly isolated in space tin can be temporarily charged by induction. The region of the object nearest the charged torso will acquire a accuse of the opposite sign; the region farthest from the charged body volition learn a charge of the same sign. Run across Figure 16-7. This statement is consistent with the bones police of electrostatics stated in Section 16.2.
A charge tin exist transferred by conduction. If we touch the knob of an electroscope with a negatively charged rubber rod, the leaves diverge. When the rod is removed, the leaves remain apart, indicating that the electroscope retains the accuse. How can nosotros make up one's mind the na
We tin reason that some of the excess electrons on the rod accept been repelled onto the knob of the electroscope. This would be true only for the region of the rod immediately in contact with the electroscope since rubber is a very poor conductor and excess electrons do not migrate freely through it. Any gratis electrons thus transferred to the electroscope, together with other free electrons of the electroscope itself, would exist repelled to the leaves past the excess electrons remaining on the parts of the rod non in contact with the electroscope.
When the rod is removed, and with it the force of repulsion, the electroscope is left with a balance negative accuse of a somewhat lower density. This deduction can exist verified past bringing a positively charged glass rod near the electroscope to induce a positive accuse on the leaves. The leaves collapse and diverge once again when the glass rod is removed. Run across Figure 16-8.
Any conducting object, properly isolated in space and charged by conduction, acquires a residual charge af the same sign as that of the trunk touching information technology. An electroscope with a known rest charge can be used to place the nature of the charge on some other object. This second object merely needs to be brought near the knob of this charged electroscope.
sixteen.7 Residual Charge past Induction When a charged safe rod is held near the knob of an electroscope, there is no transfer of electrons between the rod and the electroscope. If a path is provided for electrons to be repelled from the electroscope while the repelling forcefulness is present, free electrons escape. Then if the escape path is removed before removing the repelling force, the electroscope is left with a deficiency of electrons, giving information technology a remainder positive charge.
We can verify this decision by bringing a positively charged glass rod well-nigh the knob of the charged electroscope. The leaves of the electroscope diverge even more than. When the charged rod is withdrawn, the leaves autumn back to their original divergence and remain apart . The steps in placing a residual charge on an electroscope past induction are shown in Effigy 16-9.
Similarly, we can induce a residual negative charge an electroscope using a positively charged drinking glass rod. An isolated usher is given a rest charge past induction, charge is contrary in sign to that of the object inducing it.
16.eight The Forcefulness Between Charges From the basic law electrostatics stated in Section 16.ii, we recognize that similar charges repel and different charges concenter. If a charge is uniformly dispersed over the surface of an isolated sphere, influence on another charged object some distance away the same every bit if the charge were concentrated at the center of the sphere.
Thus the charge on such an object is considered to be located at a particular point and is called a betoken accuse.
The quantity of charge on a trunk, represented by the letter Q, is determined past the number of electrons in excess of (or less than) the number of protons. The quantity of charge is measured in coulombs (c), named for the French physicist Charles Augustin de Coulomb (1736-1806).
1 coulomb = vi.25 x lOl8 electrons
Thus the charge on ane electron, expressed in coulombs, is the reciprocal of this number and the sign of Q is -.
due east- = ane.60 ten 10-nineteen c
Similarly, the accuse on one proton is i.sixty x 10-19 coulomb and the sign of Q is +.
The coulomb is a very big unit of accuse for the study of electrostatics. Oft it is convenient to work with a fraction of this unit called the microcoulomb.
Coulomb's many experiments with charged bodies led him to conclude that the forces of electrostatic allure and repulsion obey a law similar to Newton'due south law of universal gravitation.
We at present recognize his conclusions as Coulomb's Law of electrostatics: The force betwixt ii indicate charges is directly proportional to the product of their magnitudes and inversely proportional to the square of the distance between them.
Charged bodies estimate betoken charges if they are small compared to the distances separating them. See Figure 16-10.
Coulomb's law can be expressed equally
The proportionality constant k has the numerical value 8.987 x 109 for vacuum and 8.93 x x9 for air. The dimensions of 1000 are due north chiliadii/c2. The signal charges, Qi and Q2 are in coulombs and are of proper sign to bespeak the nature of each charge. Every bit d is altitude in meters, F is expressed in newtons of forcefulness.
In Figure 16-10(A) (above) the charges Qone and Q2 accept reverse signs and the strength F acts on each accuse to move it toward the other. In Effigy 16-10(B) (higher up), charges Q1 and Qtwo have the aforementioned sign and the forcefulness F acts on each accuse to move it away from the other. The force between the two charges is a vector quantity that acts on each charge.
16.nine Electric Fields The concept of a field of force will be helpful as we consider the region surrounding an electrically charged body. A second accuse brought into this region experiences a force according to Coulomb's law. Such a region is an electrical field. An electrical field is said to be in a region of infinite if an electrical charge placed in that region is subject field to an electric force.
Let the states consider a positively charged sphere +Q of Effigy 16-11(A) isolated in spare. A small positive charge +Q, which we shall call a test charge, is brought near the surface of the sphere.
Since the examination accuse is in the electric field of the charged sphere and the charges are like, it experiences a repulsive force directed radially away from +q. Were the charge on the sphere negative, every bit in Effigy 16I1(B), the force acting on the test charge would be directed radially toward -q.
An power line of strength is a line so fatigued that a tangent to it at any point indicates the orientation of the electric field at that betoken. We can imagine a line of force as the path of a exam charge moving slowly in a very viscous medium in response to the force of the field. By convention, electrical lines of force originate at the surface of a positively charged body and terminate at the surface of a negatively charged body, each line of strength showing the direction in which a positive exam charge would be accelerated in that role of the field.
A line of force is normal to the surface of the charged body where it joins that surface.
The intensity, or strength, of an electrostatic field, as well as its management, tin be represented graphically by lines of force.
The electric field intensity is proportional to the number of lines of forcefulness per unit surface area normal to the field. Where the intensity is high, the lines of force will exist shut together. Where the intensity is low, the lines of strength will be more widely separated in the graphical representation of the field.
In Figure xvi-12(A), electric lines of force are used to prove the electric field well-nigh 2 equally but oppositely charged objects. At whatsoever point in this field the resultant force acting on a test charge +q can exist represented past a vector drawn tangent to the line of force at that point. The electrical field near 2 objects of equal accuse of the aforementioned sign is shown by the lines of force in Figure 16-12(B). The resultant forcefulness acting on a test charge +q placed at the midpoint betwixt these two similar charges would be nil.
POTENTIAL DIFFERENCE
16.10 Electric Potential Permit united states of america consider the piece of work done past gravity on a wagon benumbed down a hill. The wagon is within the gravitational field of the world and experiences a gravitational force causing it to travel downhill. Work is washed by the gravitational field, so the free energy expended comes from within the gravitational system. The wagon has less potential free energy at the bottom of the colina than it had at the peak; in social club to render the railroad vehicle to the top, piece of work must be done on information technology.
However, in this example, the free energy must be supplied from an outside source to pull against the gravitational force. The energy expended is stored in the organisation, imparting to the wagon more potential energy at the top of the loma than it had at the bottom.
Similarly, a accuse in an electric field experiences an electric force according to Coulomb's law. If the charge moves in response to this force, work is done by the electric field. Energy is removed from the system. If the charge is moved against the coulomb strength of the electric field, work is done on information technology using energy from some outside source, this free energy being stored in the organization.
If work is done as a accuse moves from one point to some other in an electric field or if work is required to move a charge from one indicate to another, these two points are said to differ in electric potential. The magnitude of the work is a mensurate of this deviation of potential.
The concept of potential departure is very important in the agreement of electric phenomena. The potential difference, V, between two points in an electrical field is the work done per unit accuse as a charge is moved between these points.
The unit of measurement of potential difference is the volt (v). One volt is the potential difference betwixt two points in an electric field such that 1 joule of work is washed in moving a charge of ane coulomb between these points.
xvi.11 Distribution of Charges Michael Faraday performed several experiments to demonstrate the distribution of accuse on an isolated object. He charged a conical silk handbag like that shown in Figure 16-14 and found that the charge was on the outside of the pocketbook.

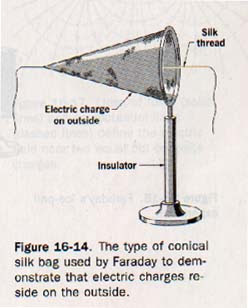

By pulling on the silk thread, he turned the bag inside out and found the charge was again on the exterior. The within of the showed no electric accuse in either position. Faraday connected the outer surface of an insulated metal pail to an electroscope by means of a wire, as shown in Figure 16-15(A). He then lowered alternately charged metal ball supported by a silk thread into the pail. The leaves of the electroscope diverged (B), indicating a charge by induction.
The positive charge on ball attracted free electrons in the pail to the inner surface, leaving the outside of the pail and the electroscope positively charged. When the ball was allowed to come in contact with the inside of the pail (C) and was so removed the leaves remained apart without alter.
It was found that the brawl no longer had a charge after its removal. The fact that the electroscope remained unchanged after the ball was removed (D) indicated (1) that there was no redistribution of positive charge on the exterior surface of the pail and (2) that the outside of the pail (and the electroscope) had acquired a internet charge equal to the charge originally placed on the ball.
From these and other experiments with isolated conductors we tin conclude that: 1. All the static charge on a conductor lies on its surface. Electrostatic charges are at remainder. If the charge were below the surface and then that an electric field existed within a conductor, gratis electrons would be acted upon by the coulomb force of this field. Work would be done, the electrons would movement because of a divergence of potential, and free energy would exist given up past the field. Since move is non consistent with a static accuse, the charge must be on the surface and the electric field must be only externally to the surface of a conductor. See Figure xvi-xvi.
2. There tin can be no potential departure between two points on the surface of a charged conductor. A difference of potential is a measure of the work done in moving a accuse from one point to some other. As no electric field exists within the usher, no work is done in moving a charge between two points on the aforementioned usher. No difference of potential can exist between such points.
three. The surface of a conductor is an equipotential surface. All points on a conductor are at the same potential and no work is done by the electric field in moving a charge residing on a conductor. If points of equal potential in an electric field near a charged object are joined, an equipotential line or surface within the field is indicated. No work is done when a test charge is moved in an electric field forth an equipotential surface.
4. Electrical lines of forcefulness are normal to equipotential surfaces. A line of force shows the direction of the force acting on a examination charge in an electric field. Information technology can be shown that in that location is no strength interim normal to this direction. Thus no piece of work is washed when a test charge is moved in an electric field normal to the lines of strength. See Figure 16-17.
5. Lines of forcefulness originate or end normal to the conductive surface of a charged object. Since the surface of a conductor is an equipotential surface, lines of force must start out perpendicularly from the surface. For the aforementioned reason, a line of force cannot originate and terminate on the same usher.
16.12 Effect of the Shape of a Conductor A charged spherical conductor perfectly isolated in space has a uniform charge density, or charge per unit of measurement area, over the outer surface. Lines of forcefulness extend radially from the surface in all directions and the equipotential surfaces of the electric field are spherical and concentric. Such symmetry is not found in all cases of charged conductors. A accuse acquired by a nonconductor such as glass is bars to its original region until it gradually leaks away. The charge placed on an isolated metal sphere quickly spreads uniformly over the entire surface. If the usher is not spherical, the charge distributes itself cording to the surface curvature, concentrating effectually points.
The pear-shaped conductor illustrated in Figure sixteen-eighteen shows the accuse more concentrated on curved regions and less concentrated on the straight regions. If the small cease is made more than pointed, the density will increase at that finish.
16.33 Discharging Effect of Points In Effigy 16-xviii lines of force and equipotential lines are shown more concentrated at the small end of the charged conductor. Geometry indicates that the intensity of the electric or potential gradient, in this region is greater than where around the usher.
If this surface is reshaped a sharply pointed end, the field intensity can become great plenty to cause the gas molecules in the air surrounding the pointed end to ionize. Ionized air consists of gas molecules from which an outer electron has been removed thus allowing both the positively charged ion and the freed electron to respond to the electric forcefulness.
When the air is ionized, the bespeak of the conductor is chop-chop discharged. There are always a few positive ions and gratis electrons present in the air. The intense electrical field near a sharp point of a charged conductor will set these charged particles in movement such that the electrons are driven in ane direction and the positive ions in the contrary direction. Violent collisions with other gas molecules volition knock out some electrons and produce more charged particles.
In this style air can exist ionized quickly when it is subjected to a sufficiently large electric stress.
In dry air at atmospheric pressure level, a potential gradient of 30 kv/cm between ii charged surfaces is required to ionize the intervening column of air. When such an air gap is ionized, a spark discharge occurs. There is a blitz of free electrons and ionized molecules across the ionized gap, discharging the surfaces and producing heat, light, and audio. Big lightning!
Normally the quantity of static electricity involved is quite small and the time elapsing of the spark discharge is very short. Atmospheric lightning, however, is a spark discharge in which the quantity of accuse is cracking. The intensity of an electrical field near a charged object can be sufficient to produce ionization at abrupt projections or sharp corners of the object. A irksome leakage of charge can occur at these locations producing a brush or corona discharge. A faint violet glow is sometimes emitted past the ionized gases of the air.
A glow belch known as St. Elmo'southward fire can sometimes exist observed at night at the tips of send masts and at the trailing edges of wing and tail surfaces of aircraft. The escape of charges from sharply pointed conductors is important in the operation of electrostatic generators and in the design of lightning arresters.
Lightning is a gigantic electric discharge in which electric charges blitz to run into their opposites. The interchange tin can occur between clouds or between a cloud and the earth. See Figure sixteen-19.
According to the Lightning Protection Establish, one hundred bolts of lightning strike the world every 2d, each commodities initiated past a potential divergence of millions of volts.
There are no known ways of preventing lightning. Nonetheless, in that location are effective means of protection from its destructiveness. Lightning rods, invented by Benjamin Franklin, are often used to protect buildings made of nonconducting materials from lightning damage.
Sharply pointed rods are strategically located above the highest projections of the building, and by their discharging effect, they normally prevent the aggregating of a unsafe electrostatic accuse. Lightning rods are thoroughly grounded. If lightning strikes, the rods provide a good conducting path into the footing. Being well grounded, the steel frames of large buildings offer excellent protection from lightning impairment.
Tv receiving antennas, even though equipped with lightning arresters, do not protect a edifice from lightning. Without lightning arresters they are a distinct chance considering they are not grounded.
26.44 Capacitors Any isolated usher is able to retain an electrostatic charge to some extent. If we identify a positive charge on such a conductor by removing electrons, the potential is raised to some positive value with respect to footing. Conversely, a negative charge placed on the conductor results in a negative potential with respect to basis.
By increasing the accuse, we increase the potential of the conductor since the potential of an isolated usher is a measure of the piece of work done in placing a accuse on the conductor. It is evident that we can proceed to increase the charge until the potential with respect to ground or other conducting surface becomes so high that corona or spark discharges occur.
However, if the usher is in an evacuated space, it could be raised to a much higher potential by standing the addition of charge. Suppose a charged conductor is connected to an electroscope, as shown in Figure 16-20(A). The leaves of the electroscope volition diverge indicating the potential of the charged conductor.
The electroscope is now a part of the conducting surface and there can be no deviation of potential betwixt different regions of a unmarried charged ducting surface.
Now suppose a grounded usher is brought nigh charged conductor, every bit shown in Figure sixteen-20(B). A negative accuse is induced on this second conductor equally electrons are repelled to ground past the negative field the first usher. The leaves of the electroscope collapse. The closer we motility the grounded plate to charged usher, the more than pronounced is this effect.
Because of the attractive force of the induced charge on grounded plate, less work is required to place the negative charge on the first conductor. Its potential is sequentially reduced appropriately. A greater charge can be placed on this conductor to raise the potential back the initial value.
A combination of conducting plates separated by an insulator that is used to store an electric charge is known as a capacitor. The surface area of the plates, their distance of separation, and the grapheme of the insulating material separating them determine the charge that can be placed on a capacitor.
The larger the accuse, the greater is the potential between the plates of a capacitor. The ratio of charge Q to the potential divergence V is a constant for a given capacitor and is known every bit its capacitance, C.
Capacitance is the ratio the charge on either plate of a capacitor to the potential between the plates. Thus
where C is the capacitance of a capacitor, Q is the quantity of accuse on either plate, and V is the potential difference between the conduction plates.
16.15 Dielectric Materials Faraday investigated the effects of different insulating materials betwixt the plates of capacitors. He constructed two capacitors with equal plate areas and equal plate spacing. Using air at normal pressure level in the space between the plates of one and an insulating cloth betwixt the plates of the other, he charged both to the same potential divergence.
These capacitors are shown as C1 and C2 respectively in Effigy 16-22. Faraday measured the quantity of charge on each capacitor and found that C2 had a greater accuse than C1 past a cistron Yard.
Qii = KQane
Except for the cloth separating the plates, the 2 capacitors are identical and accept the same potential departure beyond their plates. The factor K past which the charge on C2 exceeds the charge on Ci must exist due to a property of the insulating material of C2. The ratio Q2/V is larger than Q1/Five past this cistron K.
Many materials such equally mica, paraffin, oil, waxed paper, glass, plastics, and ceramics can be used instead of air in the space between the plates of a capacitor. For each textile, the resulting capacitance Q/V will accept a unlike value.
Materials used to separate the plates of capacitors are known as dielectrics. The ratio of the capacitance with a particular fabric separating the plates of a capacitor to the capacitance with a vacuum betwixt the plates is chosen the dielectric abiding, G, of the material.
Dry out air at atmospheric pressure has a dielectric constant of one.0006. In practice this is taken every bit unity (the aforementioned as vacuum) for dielectric constant determinations.
Dielectric constants are dimensionless numbers ranging from i to 10 for materials normally used in capacitors. The dielectric constant, K, of the dielectric material used in Figure 16-22 is
Thousand = Cii / C1
Typical dielectric constants for some common dielectric materials are given in Table 16-i.
The puncture voltage is the voltage needed to intermission through the dielectric. That is to blast a pigsty right through the darn thing! Thus wiping out a capacitor. Here is a tabular array of puncture voltages. Annotation that air breaks down at thirty,000 volts/cm.
16.17 Combinations of Capacitors Suppose three capacitors of capacitances C1, Cii and C3 are connected in parallel, that is, with one plate of each capacitor connected to ane conductor while the other plate is connected to a 2d conductor. See Figure 16-24(A).
The plates connected to the + conductor are parts of 1 conducting surface. Those connected to the - conductor form the other conducting surface. If the three capacitors are charged, it is apparent that they must take the same deviation of potential, V, beyond them. The quantity of accuse on each must be respectively
CT = C1 + Cii + Cthree
For capacitors connected in parallel, the total capacitance is the sum of all the separate capacitances.
Now suppose we connect the three capacitors in series, as shown in Figure 16-24(B) higher up. A positive charge placed on C1 from the + source induces a negative charge on the second plate as the electrons are attracted way from the plate C2, which is connected to Cone. A positive charge of the same magnitude is left on the + plate of C2. Similarly the plates of C3 acquire the same magnitude of charge. Thus
Q = Qane = Q2 = Qiii
The negative plate of C1 must exist at the same potential with respect to ground as the positive plate of Cii since they are continued and are parts of the same conducting surface. Similarly the negative plate of Cii must exist at the same potential as the positive plate of Cthree. The total departure of potential, must exist equal to the sum of the separate potential differences beyond each capacitor.
For capacitors connected in series, the reciprocal of the total capacitance is equal to the sum of the reciprocals of all the separate capacitances.
SUMMARY
Electric charges are of two kinds, negative and positive.
Like charges repel and unlike charges concenter.
Electrification is the process that produces electric charges on an object. The process involves the transfer of gratis electrons.
An electroscope may be used to signal the presence of an electric accuse and to provide a rough measurement of its magnitude.
Substances are classified as conductors or insulators based on their ability to conduct an electric charge. Near metals are good conductors. Most nonmetals are practiced insulators because they are poor conductors of electric charges. The conduction of electrical accuse by solids is related to the availability of free electrons in their structures. Isolated bodies with conducting surfaces can be charged by either induction or conduction.
The force of attraction or repulsion between point charges is enunciated in terms of Coulomb's law. Charged bodies judge betoken charges if they are small in comparison with the altitude separating them. The region about a charged body in which the coulomb force exists is an electric field.
The path along which a positive test charge is driven by an electrical field is called a line of forcefulness. Lines of strength are used to represent both the direction and intensity of the field.
The difference in potential between ii points in an electric field is defined in terms of piece of work expended in moving a charge between 2 points and quantity of charge moved between these points.
Experiments with isolated conductors accept shown that (one) the residual accuse on a conductor resides on its surface; (two) at that place can exist no difference of potential between 2 points on the surface of a charged usher; (3) the surface of a conductor is an equipotential surface; (iv) electrical lines of force are normal to equipotential surfaces; and (five) lines of forcefulness originate and end normal to the conductive surface of a charged object.
Charge density on the conductive surface of a charged body varies with the surface curvature. The intensity of the electric field near abrupt points may exist cracking enough to ionize the surrounding air, thus discharging the trunk.
An arrangement of conducting surfaces separated by insulators and used to store electric charge is chosen a capacitor. The capacity for storing electric charge is its capacitance.
The dielectric constant of an insulating fabric is adamant by comparing the material'due south effect on capacitance with the consequence of air. Capacitors may be connected in series or in parallel. The total capacitance of the capacitor network is dependent upon the kind of connection used.
VOCABULARY
capacitance, capacitor, usher (electrical), corona discharge, coulomb, Coulomb's constabulary of electrostatics, dielectric, dielectric constant, electric field, electric field intensity, electrification, electron gas, electroscope, farad, gratuitous electron, induced charge, insulator, line of force, microcoulomb, microfarad, picofarad, indicate charge, potential deviation, potential gradient, residual accuse, static charge, volt.
